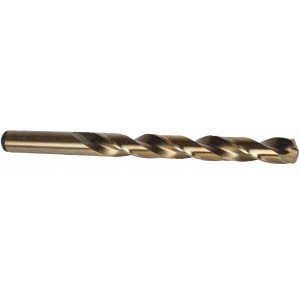

Precision Twist Drill 1.45mm 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-37/64" OAL, Split Point 016359 - 78512704
Brand: Precision Twist Drill- SKU:
- 78512704
- ID:
- 726570
$5.90
Precision Twist Drill 1.45mm 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-37/64" OAL, Split Point
Manufacturer Part #: 016359
S/N: 78512704
UNSPSC: 23241634
UPC: 086071163592
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (mm) | 1.45 |
| Drill Bit Size (Decimal Inch) | 0.0571 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 45/64 |
| Primary Workpiece Material Code | P, M, K, N, S |
| Shank Diameter (Decimal Inch) | 0.0571 |
| Overall Length (mm) | 40.00 |
| Overall Length (Inch) | 1-37/64 |
| Overall Length (Decimal Inch) | 1.5781 |
| Spiral Type | Regular |
| Flute Length (mm) | 18.00 |
| Flute Length (Decimal Inch) | 0.7031 |
| Series | 2ACO |
| Proprietary Coating/Finish | Oxide |
| Bronze | |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 12xD |
| Shank Diameter (mm) | 1.45 |
| Maximum Drilling Depth (Decimal Inch) | 0.7087 |
| Shank Length (mm) | 22 |
| Shank Length (Decimal Inch) | 0.8661 |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | No |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
