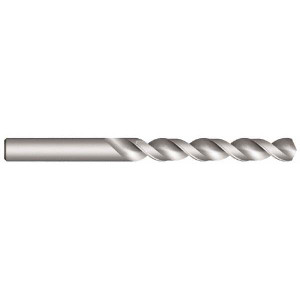

Precision Twist Drill #12 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/2" OAL, Standard Point 018512 - 78521101
Brand: Precision Twist Drill- SKU:
- 78521101
- ID:
- 726675
$7.16
Precision Twist Drill #12 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/2" OAL, Standard Point
Manufacturer Part #: 018512
S/N: 78521101
UNSPSC: 23241634
UPC: 086071185129
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #12 |
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-5/16 |
| Primary Workpiece Material Code | P, K, N, S |
| Shank Diameter (Decimal Inch) | 0.1890 |
| Overall Length (Inch) | 3-1/2in |
| Overall Length (Decimal Inch) | 3.5 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 2.3125 |
| Series | R10H-R18H |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 2.3125 |
| Maximum Drilling Depth (Inch) | 2-5/16 |
| Shank Length (Decimal Inch) | 1.1875in |
| Shank Length (Inch) | 1-3/16 |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
