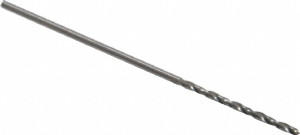

Precision Twist Drill #63 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-1/2" OAL, Standard Point 018663 - 78522414
Brand: Precision Twist Drill- SKU:
- 78522414
- ID:
- 726249
$3.57
Precision Twist Drill #63 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-1/2" OAL, Standard Point
Manufacturer Part #: 018663
S/N: 78522414
UNSPSC: 23241634
UPC: 086071186638
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #63 |
| Drill Bit Size (Decimal Inch) | 0.0370 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 5/8 |
| Primary Workpiece Material Code | P, M, K, N, S |
| Shank Diameter (Decimal Inch) | 0.0370 |
| Overall Length (Inch) | 1-1/2in |
| Overall Length (Decimal Inch) | 1.5 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 0.6250 |
| Series | R10P-R15P-R18P |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 17xD |
| Maximum Drilling Depth (Decimal Inch) | 0.6250 |
| Maximum Drilling Depth (Inch) | 5/8 |
| Shank Length (Decimal Inch) | 0.8750in |
| Shank Length (Inch) | 7/8 |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0000 - 0.0500 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
