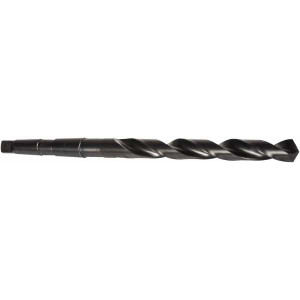

Precision Twist Drill 16.5mm, 2MT 118° Point High Speed Steel Taper Shank Drill Bit Oxide Finish, 4-29/32" Flute Length, 8-25/32" OAL, Spiral Flute, Series 5ATS 026165 - 78534047
Brand: Precision Twist Drill- SKU:
- 78534047
- ID:
- 747492
$89.22
Precision Twist Drill 16.5mm, 2MT 118° Point High Speed Steel Taper Shank Drill Bit Oxide Finish, 4-29/32" Flute Length, 8-25/32" OAL, Spiral Flute, Series 5ATS
Manufacturer Part #: 026165
S/N: 78534047
UNSPSC: 23241639
UPC: 086071261656
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 16.50 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 2MT |
| Overall Length (Inch) | 8-25/32 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | Standard |
| Flute Length (Inch) | 4-29/32 |
| Drill Bit Size (Decimal Inch) | 0.6496 |
| Flute Length (Decimal Inch) | 4.9063 |
| Tool Performance | General Purpose |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 8.7813 |
| Series | 5ATS |
| Standards | DIN 345 |
| Web Thinning | Web-Thinned |
| Flute Length x Diamter Ratio | 4xD |
