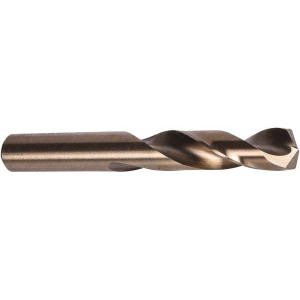

Precision Twist Drill #3 135° Spiral Flute Cobalt Screw Machine Drill Bit Oxide/Gold Finish, Right Hand Cut, 1-1/4" Flute Length, 2-3/8" OAL, Split Point, Straight Shank 041303 - 78546389
Brand: Precision Twist Drill- SKU:
- 78546389
- ID:
- 739907
$11.93
Precision Twist Drill #3 135° Spiral Flute Cobalt Screw Machine Drill Bit Oxide/Gold Finish, Right Hand Cut, 1-1/4" Flute Length, 2-3/8" OAL, Split Point, Straight Shank
Manufacturer Part #: 041303
S/N: 78546389
UNSPSC: 23241635
UPC: 086071413031
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #3 |
| Drill Bit Size (Decimal Inch) | 0.2130 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Split |
| Primary Workpiece Material | Hard Material |
| Overall Length (Inch) | 2-3/8 |
| Series | M41CO |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2.5xD |
| Tool Performance | High Performance |
| Standards | ANSI |
| Flute Length (Inch) | 1-1/4 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Designation | ANSI |
| Material Grade | M41 |
