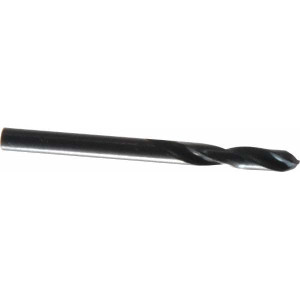

Precision Twist Drill #16 135° Spiral Flute High Speed Steel Screw Machine Drill Bit Oxide Finish, Right Hand Cut, 1-1/8" Flute Length, 2-3/16" OAL, Split Point, Straight Shank 041816 - 78547866
Brand: Precision Twist Drill- SKU:
- 78547866
- ID:
- 739769
$4.05
Precision Twist Drill #16 135° Spiral Flute High Speed Steel Screw Machine Drill Bit Oxide Finish, Right Hand Cut, 1-1/8" Flute Length, 2-3/16" OAL, Split Point, Straight Shank
Manufacturer Part #: 041816
S/N: 78547866
UNSPSC: 23241635
UPC: 086071418166
(Minimum Order Quantity=12, Package Quantity=1)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #16 |
| Drill Bit Size (Decimal Inch) | 0.1770 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Split |
| Primary Workpiece Material | Titanium |
| Overall Length (Inch) | 2-3/16 |
| Series | R41C |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2.5xD |
| Tool Performance | High Performance |
| Standards | ANSI |
| Flute Length (Inch) | 1-1/8 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Specification Number | NAS 907 |
| Specification Designation | ANSI, NAS |
