Precision Twist Drill 9/64" Diam, 6" OAL Oxide High Speed Steel Aircraft Extension Drill Bit 135° Point Angle 058009 - 78567575
Brand: Precision Twist Drill- SKU:
- 78567575
- ID:
- 708204
$5.42

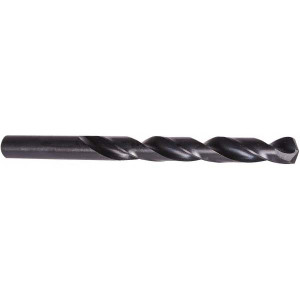

Precision Twist Drill 9/64" Diam, 6" OAL Oxide High Speed Steel Aircraft Extension Drill Bit 135° Point Angle
Manufacturer Part #: 058009
S/N: 78567575
UNSPSC: 23241637
UPC: 086071580092
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 9/64 |
| Overall Length (Inch) | 6 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Series | 500-6 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Shank Type | Straight-Cylindrical |
| Flute Type | Spiral |
| Flute Length (Inch) | 1-3/4 |
| Flute Length (Decimal Inch) | 1.7500 |
| Cutting Direction | Right Hand |
| Flute Length X Diameter Ratio | 4xD |
| Self-Centering | Yes |
| Point Type | Split |
| Shank Diameter (Inch) | 9/64 |
| Shank Diameter (Decimal Inch) | 0.1406 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | NAS 907 Type B |
