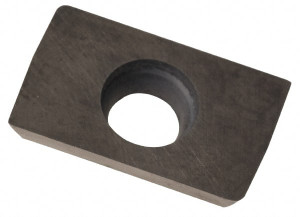

SUPERBEE EM15156.156R C5 INSRT Carbide Milling Insert Uncoated, 5/8" Long x 1/8" Thick x 3/8" Wide EM15156ENT56 - 78629250
Brand: SUPERBEE- SKU:
- 78629250
- ID:
- 663284
$18.96
SUPERBEE EM15156.156R C5 INSRT Carbide Milling Insert Uncoated, 5/8" Long x 1/8" Thick x 3/8" Wide
Manufacturer Part #: EM15156ENT56
S/N: 78629250
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | EM |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | ENT56 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Thickness (mm) | 3.18 |
| Coating/Finish | Bright/Uncoated |
| Insert Size Code | 15156 |
| Material Grade | C5 |
| Width (Inch) | 3/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Series | EM |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | EM15156ENT56 |
| Convex Radius (Decimal Inch) | 0.1560 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | EM15156 |
| Cutter Series Compatibility | BE, BB, BC, BD, BBD, CB, CM, CMS |
| Chip Breaker | None |
| Material Application | Steel |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Length (mm) | 15.88 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 9.53 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
