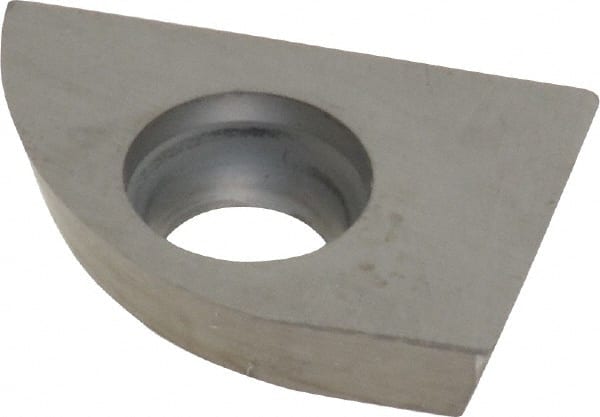

SUPERBEE EM19500.500R C2 INSRT Carbide Milling Insert Uncoated, 3/4" Long x 0.156" Thick x 1/2" Wide EM19500FNT33 - 78634136
Brand: SUPERBEE- SKU:
- 78634136
- ID:
- 663338
$31.17
SUPERBEE EM19500.500R C2 INSRT Carbide Milling Insert Uncoated, 3/4" Long x 0.156" Thick x 1/2" Wide
Manufacturer Part #: EM19500FNT33
S/N: 78634136
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | EM |
| Insert Size | 19 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | NT33 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
| Thickness (mm) | 3.96 |
| Coating/Finish | Bright/Uncoated |
| Insert Size Code | 19500 |
| Material Grade | C2 |
| Width (Inch) | 1/2 |
| Length (Inch) | 3/4 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | EM |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | EM19500FNT33 |
| Convex Radius (Decimal Inch) | 0.5000 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | EM19500 |
| Cutter Series Compatibility | BE, BB, BC, BD, BBD, CB, CM, CMS |
| Chip Breaker | None |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Length (mm) | 19.05 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 12.70 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7500 |
