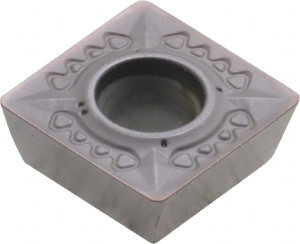

Kennametal SDET43PDER8GB KC520M Carbide Milling Insert TiAlN Finish, 3/16" Thick 1536224 - 78656162
Brand: Kennametal- SKU:
- 78656162
- ID:
- 661264
$36.82
Kennametal SDET43PDER8GB KC520M Carbide Milling Insert TiAlN Finish, 3/16" Thick
Manufacturer Part #: 1536224
S/N: 78656162
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SDET |
| Insert Size | 43 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC520M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiAlN |
| Relief Angle | 15 |
| Insert Size Code | 43 |
| Material Grade | C1, C2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.6610 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Insert Hand | Right Hand |
| Series | SDET |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | SDET1204PDERGB |
| Rake Angle | 5 |
| Manufacturers Catalog Number | SDET1204PDERGB |
| Chip Breaker | GB |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 90 |
