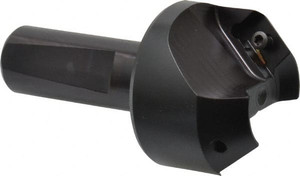

KYOCERA 41° Lead Angle, 1" Cut Diam, Indexable & Chamfer End Mill Takes 2 Inserts, XPMT 15T3 Insert Style, CM Toolholder, 3.15" OAL, 0.433" Max Depth of Cut 8600736 - 78823861
Brand: KYOCERA- SKU:
- 78823861
- ID:
- 679887
$350.93
KYOCERA 41° Lead Angle, 1" Cut Diam, Indexable & Chamfer End Mill Takes 2 Inserts, XPMT 15T3 Insert Style, CM Toolholder, 3.15" OAL, 0.433" Max Depth of Cut
Manufacturer Part #: 8600736
S/N: 78823861
UNSPSC: 23291600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Compatible Insert Size Code | XPMT 15T304, XPMT 15T308, XPMT 15T316, XPMT 15T324, XPMT 15T331, XPMT 15T364 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Cutting Direction | Right Hand |
| Insert Style | XPMT 15T3.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.1500 |
| Series | CM |
| Toolholder Style | CM |
| Functional Length (Decimal Inch) | 3.1500 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Maximum Body Diameter (mm) | 19.05 |
| Tool Application | Facing |
| Head Length (Decimal Inch) | 1.2500 |
| Head Length (Inch) | 1-1/4 |
| Width (Decimal Inch - 4 Decimals) | 0.3930 |
| Coolant Through | No |
| Shank Type | Whistle Notch |
