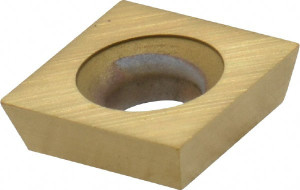

Kennametal SDEB26150 KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.0937" Thick 1157495 - 78998028
Brand: Kennametal- SKU:
- 78998028
- ID:
- 661279
$34.09
Kennametal SDEB26150 KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.0937" Thick
Manufacturer Part #: 1157495
S/N: 78998028
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SDEB |
| Insert Size | 2. |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Coating/Finish | TiN, TiCN, TiN |
| Relief Angle | 15 |
| Insert Size Code | 2.61.50 |
| Material Grade | C5, C6, C7 |
| Thickness (Inch) | 3/32 |
| Inscribed Circle (Inch) | 21/64 |
| Inscribed Circle (Decimal Inch) | 0.3272 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Series | SDEB |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.14 |
| Hole Diameter (Decimal Inch) | 0.1402 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Iso Code | SDEB080201 |
| Manufacturers Catalog Number | SDEB080201 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 90 |
