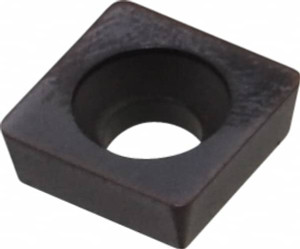

Kennametal SPEB322 KC520M Carbide Milling Insert TiAlN Finish, 0.1252" Thick 1556948 - 78999182
Brand: Kennametal- SKU:
- 78999182
- ID:
- 661335
$40.02
Kennametal SPEB322 KC520M Carbide Milling Insert TiAlN Finish, 0.1252" Thick
Manufacturer Part #: 1556948
S/N: 78999182
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SPEB |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC520M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Coating/Finish | TiAlN |
| Relief Angle | 11 |
| Insert Size Code | 322 |
| Material Grade | C1, C2 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Insert Hand | Neutral |
| Series | SPEB |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.16 |
| Hole Diameter (Decimal Inch) | 0.1563 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | SPEB090308 |
| Manufacturers Catalog Number | SPEB090308 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 90 |
