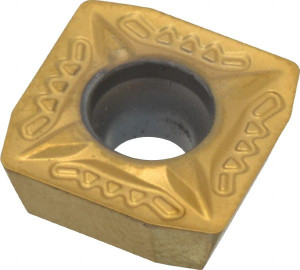

Kennametal SDPT43EDER8GB KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.188" Thick 1718015 - 78999398
Brand: Kennametal- SKU:
- 78999398
- ID:
- 661341
$32.40
Kennametal SDPT43EDER8GB KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.188" Thick
Manufacturer Part #: 1718015
S/N: 78999398
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SDPT |
| Insert Size | 4 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1880 |
| Coating/Finish | TiAlN |
| Relief Angle | 15 |
| Insert Size Code | 43 |
| Material Grade | C5, C6, C7 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | SDPT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | SDPT43EDER8GB |
| Iso Code | SDPT1204EDERGB |
| Standards | ANSI, ISO |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SDPT1204EDERGB |
| Chip Breaker | GB |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
