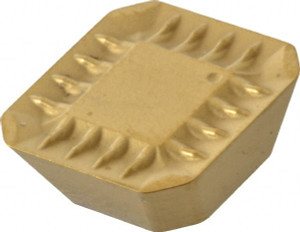

Kennametal SEKR43AFEN6GP KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.1827" Thick 1719253 - 78999422
Brand: Kennametal- SKU:
- 78999422
- ID:
- 661343
$35.52
Kennametal SEKR43AFEN6GP KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.1827" Thick
Manufacturer Part #: 1719253
S/N: 78999422
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SEKR |
| Insert Size | 43 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0433 |
| Corner Radius (mm) | 1.10 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1827 |
| Coating/Finish | TiN, TiCN, TiN |
| Relief Angle | 20 |
| Insert Size Code | 43 |
| Material Grade | C5, C6, C7 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Insert Hand | Neutral |
| Series | SEKR |
| Coating Process | PVD |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Iso Code | SEKR1204AFENGP |
| Rake Angle | 30 |
| Manufacturers Catalog Number | SEKR1204AFENGP |
| Chip Breaker | GP |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Included Angle Degree | 90 |
