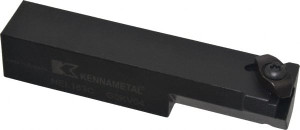

Kennametal 5" OAL Left Hand Internal/External Indexable Threading Toolholder 1" x 1" Shank, Uses N.3R Inserts, NE Toolholder, Series Top Notch 1097234 - 79236709
Brand: Kennametal- SKU:
- 79236709
- ID:
- 683471
$201.00
Kennametal 5" OAL Left Hand Internal/External Indexable Threading Toolholder 1" x 1" Shank, Uses N.3R Inserts, NE Toolholder, Series Top Notch
Manufacturer Part #: 1097234
S/N: 79236709
UNSPSC: 23291800
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Type | Internal & External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Toolholder Style | NE |
| Insert Compatibility | N.3R |
| Insert Holding Method | Clamp |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Threading |
| Head Length (Decimal Inch) | 0.7500 |
| Head Length (mm) | 19.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Maximum Depth of Cut (mm) | 5.33 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Coolant Through | No |
| Series | Top Notch |
