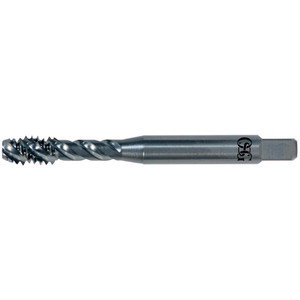

OSG Spiral Flute Tap: #5-40 UNC, 3 Flutes, Modified Bottoming, 2B/3B Class of Fit, Vanadium High Speed Steel, TICN Coated 1-15/16" OAL, Right Hand Thread, H2, Series 290 2907008 - 79332391
Brand: OSG USA, INC.- SKU:
- 79332391
- ID:
- 771110
$40.87
OSG Spiral Flute Tap: #5-40 UNC, 3 Flutes, Modified Bottoming, 2B/3B Class of Fit, Vanadium High Speed Steel, TICN Coated 1-15/16" OAL, Right Hand Thread, H2, Series 290
Manufacturer Part #: 2907008
S/N: 79332391
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #5-40 |
| Thread Standard | UNC |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Thread Limit | H2 |
| Class Of Fit | 2B, 3B |
| Coating/Finish | TiCN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Alloy Steel, Carbon Steel, Cast Iron, Stainless Steel, Die Steel, Hardened Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Threads per Inch | 40 |
| Overall Length (Inch) | 1-15/16 |
| Thread Length (Decimal Inch) | 0.2 |
| Overall Length (Decimal Inch) | 3.375 |
| Shank Diameter (Decimal Inch) | 0.367 |
| Neck Length (Decimal Inch) | 1.933 |
| Square Length (Decimal Inch) | 0.1875 |
| Square Size (Decimal Inch) | 0.11 |
| Flute Style | Spiral |
| Series | 290 |
