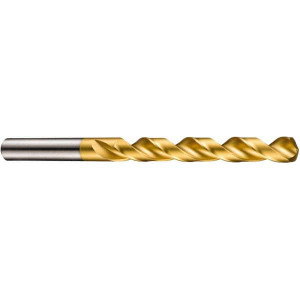

Dormer Pramet 5mm 130° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 86mm OAL, ADX Point 0036693 - 79769170
Brand: Dormer Pramet- SKU:
- 79769170
- ID:
- 719049
$17.08
Dormer Pramet 5mm 130° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 86mm OAL, ADX Point
Manufacturer Part #: 0036693
S/N: 79769170
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 5.00 |
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | ADX |
| Primary Workpiece Material | Aluminum Magnesium, Copper, Synthetic |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Drill Bit Finish/Coating | Titanium Nitride |
| Primary Workpiece Material Code | K, M, N, O, P |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 86.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 52.00 |
| Series | A510 |
| Flute By Diameter Ratio | 4xD |
| Shank Length (mm) | 34.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
