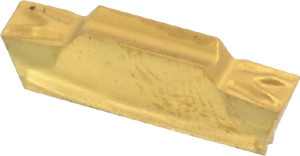

Seco Tools LCMF160302A125FT CP500 Carbide Multi-Directional Turning Insert TiAlN/TiN Finish, 1/8" Cutting Width, 0.177" Cutting Height, 0.008" Corner Radius 00017905 - 79844429
Brand: Seco Tools- SKU:
- 79844429
- ID:
- 668942
$51.94
Seco Tools LCMF160302A125FT CP500 Carbide Multi-Directional Turning Insert TiAlN/TiN Finish, 1/8" Cutting Width, 0.177" Cutting Height, 0.008" Corner Radius
Manufacturer Part #: 00017905
S/N: 79844429
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | LCMF |
| Insert Size Code | 160302 |
| Insert Material | Solid Carbide |
| Material Grade | Micrograin |
| Manufacturer Grade | CP500 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Maximum Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Cutting Width (mm) | 3.18 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Insert Hand | Neutral |
| Chipbreaker | FT |
| Series | MDT |
| Coating Process | PVD |
| Full Radius Insert | No |
| Relief Angle | 7 |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Full Radius | No |
| Insert Length (Decimal Inch) | 0.6300 |
| Style | LCMF160302-A125-FT |
| Insert Length (mm) | 15.90 |
| Single Or Double End | Double |
| Coating/Finish | Coated |
