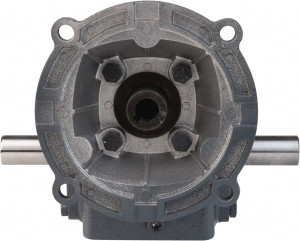

Boston Gear 2.06 Centerline Distance, 15:1, 117 RPM Output, 1.72 Input Horsepower, 840 Lbs. Max Torque, Speed Reducer Part No. F721-15-B7-H, Double Shaft Left & Right, 7/8" Bore, 4.34" High, 140TC NEMA 52585 - 80900285

Boston Gear 2.06 Centerline Distance, 15:1, 117 RPM Output, 1.72 Input Horsepower, 840 Lbs. Max Torque, Speed Reducer Part No. F721-15-B7-H, Double Shaft Left & Right, 7/8" Bore, 4.34" High, 140TC NEMA 52585 - 80900285

Brand:   Boston Gear
SKU:
80900285
ID:
558887
UPC:
781711525852
callling
$1,371.97
Current Stock:
Adding to cart… The item has been added

Boston Gear

Boston Gear 2.06 Centerline Distance, 15:1, 117 RPM Output, 1.72 Input Horsepower, 840 Lbs. Max Torque, Speed Reducer Part No. F721-15-B7-H, Double Shaft Left & Right, 7/8" Bore, 4.34" High, 140TC NEMA

Manufacturer Part #: 52585

S/N: 80900285

UNSPSC: 26111500

UPC: 781711525852

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Centerline Distance2.0600
Shaft TypeDouble
Ratio151
PartNoF721-15-B7-H
Maximum Input Horsepower1.72
Nema/Iec Frame Size140TC NEMA
Maximum Torque (In/Lb.)840.0
Bore Diameter (Decimal Inch)0.8750
Output RPM at 1750 Input117.0
Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750733
Torque Output (In/Lb) with 1 Horsepower Motor @ 1750489
Height (Decimal Inch)4.3400
