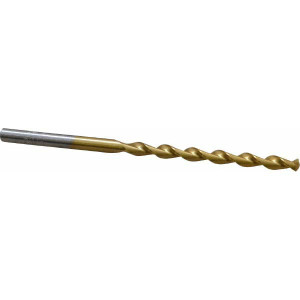

Chicago-Latrobe 9/64" 135° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-7/8" OAL, Split Point 53902 - 80902091
Brand: Chicago-Latrobe- SKU:
- 80902091
- ID:
- 716255
$7.24
Chicago-Latrobe 9/64" 135° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-7/8" OAL, Split Point
Manufacturer Part #: 53902
S/N: 80902091
UNSPSC: 23241634
UPC: 662355539026
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Steel Alloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Titanium Nitride |
| Flute Length (Inch) | 1-3/4 |
| Overall Length (Inch) | 2-7/8 |
| Series | 150DHT |
| Shank Diameter (Inch) | 9/64 |
| Shank Length (mm) | 28.57 |
| Shank Length (Decimal Inch) | 1.1250 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| UNSPSC Code | 23241634 |
