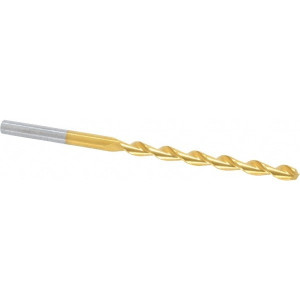

Chicago-Latrobe 5/32" 135° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-1/8" OAL, Split Point 53903 - 80902109
Brand: Chicago-Latrobe- SKU:
- 80902109
- ID:
- 716311
$7.40
Chicago-Latrobe 5/32" 135° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-1/8" OAL, Split Point
Manufacturer Part #: 53903
S/N: 80902109
UNSPSC: 23241634
UPC: 662355539033
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Steel Alloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Titanium Nitride |
| Flute Length (Inch) | 2 |
| Overall Length (Inch) | 3-1/8 |
| Flute Length (Decimal Inch) | 2.0000 |
| Series | 150DHT |
| Shank Diameter (Inch) | 5/32 |
| Shank Length (mm) | 28.57 |
| Shank Length (Decimal Inch) | 1.1250 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| UNSPSC Code | 23241634 |
