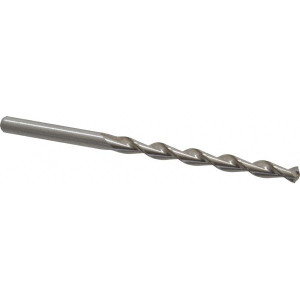

Chicago-Latrobe #3 135° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-3/4" OAL, Split Point 69003 - 80905037
Brand: Chicago-Latrobe- SKU:
- 80905037
- ID:
- 715936
$6.63
Chicago-Latrobe #3 135° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-3/4" OAL, Split Point
Manufacturer Part #: 69003
S/N: 80905037
UNSPSC: 23241634
UPC: 662355690031
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #3 |
| Drill Bit Size (Decimal Inch) | 0.2130 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Steel Alloy |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Bright/Uncoated |
| Flute Length (Inch) | 2-1/2 |
| Shank Diameter (Decimal Inch) | 0.2130 |
| Overall Length (Inch) | 3-3/4 |
| Series | 150DH |
| Shank Length (mm) | 31.75 |
| Shank Length (Decimal Inch) | 1.2500 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| UNSPSC Code | 23241634 |
