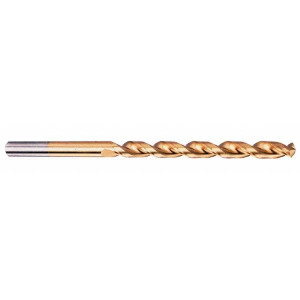

Chicago-Latrobe 11/64" 135° Parabolic Flute High Speed Steel Taper Length Drill Bit TiN Finish, 4-1/8" Flute Length, 5-3/4" OAL, Split Point, Tanged Shank, Series 120DHT 55243 - 80908114
Brand: Chicago-Latrobe- SKU:
- 80908114
- ID:
- 744106
$16.23
Chicago-Latrobe 11/64" 135° Parabolic Flute High Speed Steel Taper Length Drill Bit TiN Finish, 4-1/8" Flute Length, 5-3/4" OAL, Split Point, Tanged Shank, Series 120DHT
Manufacturer Part #: 55243
S/N: 80908114
UNSPSC: 23241600
UPC: 662355552438
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Inch) | 11/64 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Tool Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Tanged |
| Material Application3 | Alloy Steel, Aluminum, Carbon Steel, Non-Ferrous Metals |
| Overall Length (Decimal Inch) | 5-3/4 |
| Series | 120DHT |
| Flute Length (Inch) | 4-1/8 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | Heavy-Duty |
