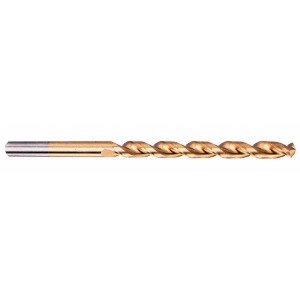

Chicago-Latrobe 11/32" 135° Parabolic Flute High Speed Steel Taper Length Drill Bit TiN Finish, 5-1/4" Flute Length, 6-1/2" OAL, Split Point, Tanged Shank, Series 120DHT 55254 - 80908221
Brand: Chicago-Latrobe- SKU:
- 80908221
- ID:
- 744177
$30.29
Chicago-Latrobe 11/32" 135° Parabolic Flute High Speed Steel Taper Length Drill Bit TiN Finish, 5-1/4" Flute Length, 6-1/2" OAL, Split Point, Tanged Shank, Series 120DHT
Manufacturer Part #: 55254
S/N: 80908221
UNSPSC: 23241600
UPC: 662355552544
(Minimum Order Quantity=6)
(Please order in multiples of 6)
Specifications:
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Tool Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Coated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Tanged |
| Threaded Shank | No |
| Shank Diameter (Inch) | 11/32 |
| Shank Diameter (mm) | 8.73 |
| Material Application3 | Alloy Steel, Aluminum, Carbon Steel, Non-Ferrous Metals |
| Overall Length (Decimal Inch) | 6-1/2 |
| Series | 120DHT |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Shank Length (Decimal Inch) | 1.2500 |
| Shank Length (mm) | 31.75 |
| Flute Length (Inch) | 5-1/4 |
| Shank Length (Inch) | 1-1/4 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Tool Application | Self-Centering |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | Heavy-Duty |
