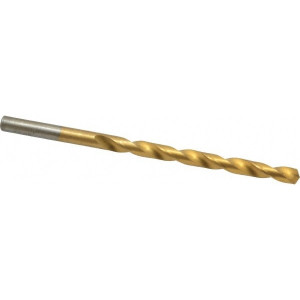

Chicago-Latrobe #9 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-5/8" OAL, Split Point 54019 - 81132433
Brand: Chicago-Latrobe- SKU:
- 81132433
- ID:
- 716486
$12.80
Chicago-Latrobe #9 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-5/8" OAL, Split Point
Manufacturer Part #: 54019
S/N: 81132433
UNSPSC: 23241634
UPC: 662355540190
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #9 |
| Drill Bit Size (Decimal Inch) | 0.1960 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Stainless Steel, Steel |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Titanium Nitride |
| Flute Length (Inch) | 2-7/16 |
| Shank Diameter (Decimal Inch) | 0.1960 |
| Overall Length (Inch) | 3-5/8 |
| Spiral Type | Regular |
| Series | 2550 |
| Shank Length (mm) | 30.16 |
| Shank Length (Decimal Inch) | 1.1875 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | DIN 338, NAS 907 Type J |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
