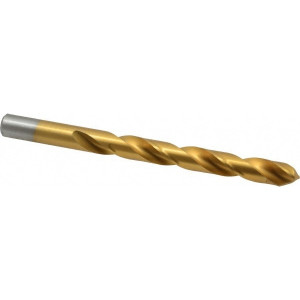

Chicago-Latrobe 31/64" 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-7/8" OAL, Split Point 54074 - 81133357
Brand: Chicago-Latrobe- SKU:
- 81133357
- ID:
- 717152
$47.90
Chicago-Latrobe 31/64" 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-7/8" OAL, Split Point
Manufacturer Part #: 54074
S/N: 81133357
UNSPSC: 23241634
UPC: 662355540749
(Minimum Order Quantity=6)
(Please order in multiples of 6)
Specifications:
| Drill Bit Size (Inch) | 31/64 |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Stainless Steel, Steel |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Titanium Nitride |
| Flute Length (Inch) | 4-3/8 |
| Overall Length (Inch) | 5-7/8 |
| Spiral Type | Regular |
| Series | 2550 |
| Shank Diameter (Inch) | 31/64 |
| Shank Length (mm) | 38.10 |
| Shank Length (Decimal Inch) | 1.5000 |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | DIN 338, NAS 907 Type J |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
