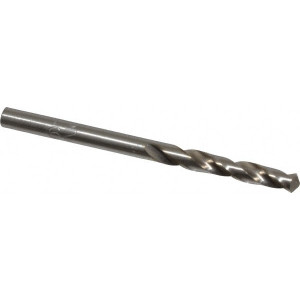

Chicago-Latrobe #29 118° Spiral Flute High Speed Steel Screw Machine Drill Bit Bright Finish, Right Hand Cut, 15/16" Flute Length, 1-15/16" OAL, Standard Point, Straight Shank 48729 - 81354292
Brand: Chicago-Latrobe- SKU:
- 81354292
- ID:
- 732991
$1.67
Chicago-Latrobe #29 118° Spiral Flute High Speed Steel Screw Machine Drill Bit Bright Finish, Right Hand Cut, 15/16" Flute Length, 1-15/16" OAL, Standard Point, Straight Shank
Manufacturer Part #: 48729
S/N: 81354292
UNSPSC: 23241635
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #29 |
| Drill Bit Size (Decimal Inch) | 0.1360 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Steel |
| Overall Length (Inch) | 1-15/16 |
| Series | 157 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Standards | ISO |
| Flute Length (Inch) | 15/16 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
