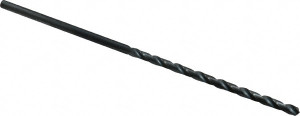

Chicago-Latrobe #27 118° Spiral Flute High Speed Steel Taper Length Drill Bit Oxide Finish, 3" Flute Length, 5-3/8" OAL, Standard Point, Straight Shank, Series 120 50317 - 81408270
Brand: Chicago-Latrobe- SKU:
- 81408270
- ID:
- 743990
$10.78
Chicago-Latrobe #27 118° Spiral Flute High Speed Steel Taper Length Drill Bit Oxide Finish, 3" Flute Length, 5-3/8" OAL, Standard Point, Straight Shank, Series 120
Manufacturer Part #: 50317
S/N: 81408270
UNSPSC: 23241600
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #27 |
| Drill Bit Size (Decimal Inch) | 0.1440 |
| Tool Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight |
| Flute Length (Decimal Inch) | 3.0000 |
| Material Application3 | Alloy Steel, Carbon Steel, Cast Iron |
| Overall Length (Decimal Inch) | 5-3/8 |
| Series | 120 |
| Flute Length (Inch) | 3 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | General Purpose |
| Spiral Type | Regular |
