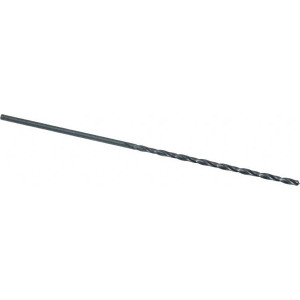

Chicago-Latrobe #53 118° Spiral Flute High Speed Steel Taper Length Drill Bit Oxide Finish, 1-3/4" Flute Length, 3" OAL, Standard Point, Straight Shank, Series 120 50343 - 81408536
Brand: Chicago-Latrobe- SKU:
- 81408536
- ID:
- 743914
$5.63
Chicago-Latrobe #53 118° Spiral Flute High Speed Steel Taper Length Drill Bit Oxide Finish, 1-3/4" Flute Length, 3" OAL, Standard Point, Straight Shank, Series 120
Manufacturer Part #: 50343
S/N: 81408536
UNSPSC: 23241600
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #53 |
| Drill Bit Size (Decimal Inch) | 0.0595 |
| Tool Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Coated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight |
| Threaded Shank | No |
| Shank Diameter (mm) | 1.51 |
| Material Application3 | Alloy Steel, Carbon Steel, Cast Iron |
| Overall Length (Decimal Inch) | 3 |
| Series | 120 |
| Shank Diameter (Decimal Inch) | 0.0595 |
| Shank Length (Decimal Inch) | 1.2500 |
| Shank Length (mm) | 31.75 |
| Flute Length (Inch) | 1-3/4 |
| Shank Length (Inch) | 1-1/4 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Tool Performance | General Purpose |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | General Purpose |
| Spiral Type | Regular |
