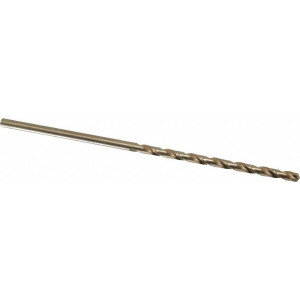

Chicago-Latrobe 3/16" 135° Spiral Flute Cobalt Taper Length Drill Bit Oxide/Gold Finish, 3-3/8" Flute Length, 5-3/4" OAL, Split Point, Straight Shank, Series 520 44812 - 81410128
Brand: Chicago-Latrobe- SKU:
- 81410128
- ID:
- 744102
$21.02
Chicago-Latrobe 3/16" 135° Spiral Flute Cobalt Taper Length Drill Bit Oxide/Gold Finish, 3-3/8" Flute Length, 5-3/4" OAL, Split Point, Straight Shank, Series 520
Manufacturer Part #: 44812
S/N: 81410128
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Tool Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Coated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight |
| Threaded Shank | No |
| Shank Diameter (mm) | 4.76 |
| Material Application3 | Cast Iron, High-Tensile Steel, Inconel, Manganese Steel, Titanium |
| Overall Length (Decimal Inch) | 5-3/4 |
| Series | 520 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Length (Decimal Inch) | 2.3750 |
| Shank Length (mm) | 60.32 |
| Flute Length (Inch) | 3-3/8 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Tool Application | Self-Centering |
| Tool Performance | High |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | General Purpose |
| Spiral Type | Regular |
| Material Grade | M-42 |
