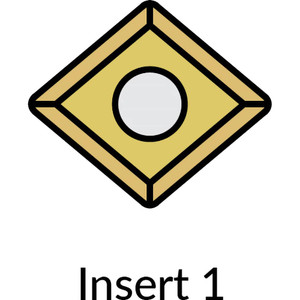

Micro 100 CCMT 21.51 Carbide Turning Insert 0.015" Corner Radius 50-1100 - 81524001
Brand: Micro 100- SKU:
- 81524001
- ID:
- 674021
$20.15
Micro 100 CCMT 21.51 Carbide Turning Insert 0.015" Corner Radius
Manufacturer Part #: 50-1100
S/N: 81524001
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80degree |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | CCMT |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.0852 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4in |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2560 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | CCMT 21.51 |
| Chip Breaker | Flat Top |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.2500in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Chamfering, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
