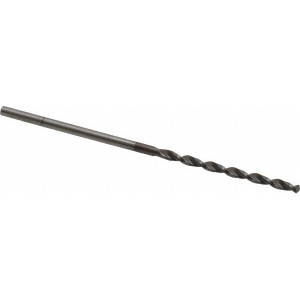

Chicago-Latrobe 1/16" 135° High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-7/8" OAL, Notched Point 42004 - 82135989
Brand: Chicago-Latrobe- SKU:
- 82135989
- ID:
- 716295
$8.36
Chicago-Latrobe 1/16" 135° High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-7/8" OAL, Notched Point
Manufacturer Part #: 42004
S/N: 82135989
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 1/16 |
| Drill Bit Size (Decimal Inch) | 0.0625 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Notched |
| Primary Workpiece Material | Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | TiCN |
| Flute Length (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.0625 |
| Overall Length (Inch) | 1-7/8 |
| Series | 150WLPN |
| Shank Diameter (Inch) | 1/16 |
| Shank Length (mm) | 25.40 |
| Shank Length (Decimal Inch) | 1.0000 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Material Grade | M7 |
| UNSPSC Code | 23241634 |
