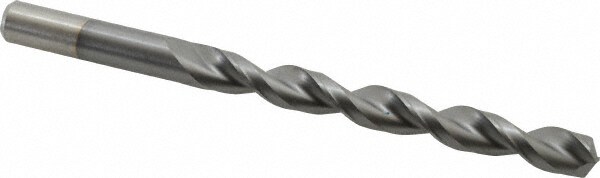

Chicago-Latrobe 23/64" 135° High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-7/8" OAL, Notched Point 42023 - 82136177
Brand: Chicago-Latrobe- SKU:
- 82136177
- ID:
- 717065
$41.81
Chicago-Latrobe 23/64" 135° High Speed Steel Jobber Drill TiCN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-7/8" OAL, Notched Point
Manufacturer Part #: 42023
S/N: 82136177
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Notched |
| Primary Workpiece Material | Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | TiCN |
| Flute Length (Inch) | 3-1/2 |
| Shank Diameter (Decimal Inch) | 0.3594 |
| Overall Length (Inch) | 4-7/8 |
| Series | 150WLPN |
| Shank Length (mm) | 34.92 |
| Shank Length (Decimal Inch) | 1.3750 |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Material Grade | M7 |
| UNSPSC Code | 23241634 |
