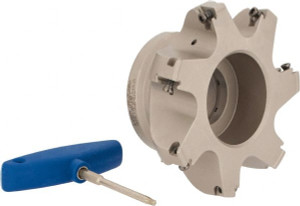

Iscar 5" Cut Diam, 1-1/2" Arbor Hole Diam, 0.512" Max Depth, Indexable Square-Shoulder Face Mill Takes 7 Inserts, 0/90° Lead Angle, 2-1/2" High, HM390 TDKT 1505 Insert Style, Through Coolant, Series HeliIQMill 3106567 - 82188699
Brand: Iscar- SKU:
- 82188699
- ID:
- 680682
$1,878.84
Iscar 5" Cut Diam, 1-1/2" Arbor Hole Diam, 0.512" Max Depth, Indexable Square-Shoulder Face Mill Takes 7 Inserts, 0/90° Lead Angle, 2-1/2" High, HM390 TDKT 1505 Insert Style, Through Coolant, Series HeliIQMill
Manufacturer Part #: 3106567
S/N: 82188699
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | HM390 TDKT 1505 |
| Cutter Style | HM390 FTD-15 |
| Insert Holding Method | Clamp, Screw |
| Lead Angle | 0/90 |
| Series | HeliIQMill |
| Maximum Ramping Angle | 0.50 |
| Overall Height (Decimal Inch) | 2.5000 |
| Hub Diameter (Decimal Inch) | 3.2200 |
| Standards | ISO |
| Complete Insert Compatibility | HM390 TDKT 1505 |
| Manufacturers Catalog Number | HM390 FTD D5.00-7-1.5-15 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
