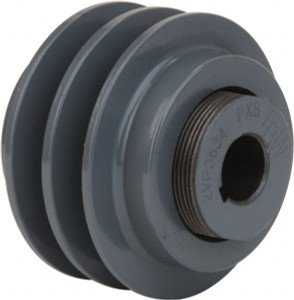

TB Woods 1-1/8" Inside Diam x 4-3/4" Outside Diam, 2 Groove, Variable Pitched Type 2 Sheave Belt Sections 3L, 4L, A, 5L & B, 3" Sheave Thickness, 1-3/16" Side Groove Thickness 1-3/8 to 2-1/8" Face Width 2VP50118 - 82217712
Brand: TB Wood's- SKU:
- 82217712
- ID:
- 566055
$195.63
TB Wood's 1-1/8" Inside Diam x 4-3/4" Outside Diam, 2 Groove, Variable Pitched Type 2 Sheave Belt Sections 3L, 4L, A, 5L & B, 3" Sheave Thickness, 1-3/16" Side Groove Thickness 1-3/8 to 2-1/8" Face Width
Manufacturer Part #: 2VP50118
S/N: 82217712
UNSPSC: 26111800
UPC: 698672025348
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Number Of Grooves | 2 |
| For Belt Trade Size | 3L, 4L, 5L |
| Minimum Pitch Diameter of Belt Type 3L | 3.27mm, 3.27in |
| Minimum Open Turns For 3l Belts | 4.5mm, 4.5in |
| Minimum Open Turns For 4l Or A Belts | 6.0mm, 6.0in |
| Material | Cast Iron |
| Maximum Pitch Diameter of Belt Type 3L | 4.22mm, 4.22in |
| Maximum Pitch Diameter of Belt Type 4L or A | 4.75mm, 4.75in |
| Minimum Pitch Diameter of Belt Type 4L or A | 3.57mm, 3.57in |
| Maximum Pitch Diameter of Belt Type 5L or B | 4.81mm, 4.81in |
| Minimum Pitch Diameter of Belt Type 5L or B | 3.98mm, 3.98in |
| Minimum Open Turns for 5L or B Belts | 6mm, 6in |
| Maximum Open Turns for 4L or A Belts | 0mm, 0in |
| Maximum Open Turns for 5L or B Belts | 2mm, 2in |
