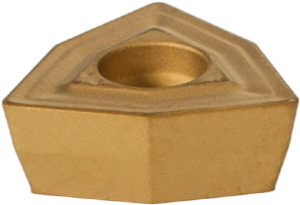

Komet KT02 381204 BK72 Carbide Indexable Drill Insert TiCN/TiC/Al2O3/TiN Finish, 8mm Inscribed Circle, 3.8mm Thick, 0.4mm Corner Radius, Neutral Cut, 84° Trigon W29240100472 - 82337627
Brand: Komet- SKU:
- 82337627
- ID:
- 655992
$19.06
Komet KT02 381204 BK72 Carbide Indexable Drill Insert TiCN/TiC/Al2O3/TiN Finish, 8mm Inscribed Circle, 3.8mm Thick, 0.4mm Corner Radius, Neutral Cut, 84° Trigon
Manufacturer Part #: W29240100472
S/N: 82337627
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | WOEX | |
| Insert Material | Carbide | |
| Manufacturer Grade | BK72 | |
| Inscribed Circle (Decimal Inch) | 0.3150 | |
| Inscribed Circle (mm) | 8.00 | |
| Corner Radius (Decimal Inch) | 0.0157 | |
| Corner Radius (mm) | 0.4 | |
| Chipbreaker | 01 | |
| Coating Process | CVD | |
| Shape | Trigon | |
| Relief Angle | 8 | |
| Primary Workpiece Material | Stainless Steel, Steel | |
| Primary Workpiece Material Code | M, P | |
| Standards | ISO 14001, ISO 90001 | 2008 |
| Insert Size | 05T304 | |
| Length (Mm) | 5.30 | |
| Length (Decimal Inch - 4 Decimals) | 0.2087 | |
| Included Angle Degree | 84 | |
| Thickness (Decimal Inch - 4 Decimals) | 0.1496 | |
| Coating/Finish | TiCN, TiC, Al2O3, TiN | |
| Insert Size Code | W29 | |
| UNSPSC Code | 23242105 |
