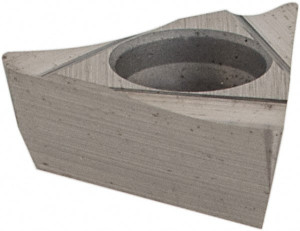

Big Kaiser TP071225C3G F/ALUM Carbide Boring Insert Uncoated, 60° Triangle, 0.012" Corner Radius, 0.165" Inscribed Circle, 0.098" Thick, 11° Relief Angle 10.651.723 - 82450172

Big Kaiser TP071225C3G F/ALUM Carbide Boring Insert Uncoated, 60° Triangle, 0.012" Corner Radius, 0.165" Inscribed Circle, 0.098" Thick, 11° Relief Angle 10.651.723 - 82450172

Brand:   Big Kaiser
SKU:
82450172
ID:
646267
callling
$41.67
Current Stock:
Adding to cart… The item has been added

Big Kaiser

Big Kaiser TP071225C3G F/ALUM Carbide Boring Insert Uncoated, 60° Triangle, 0.012" Corner Radius, 0.165" Inscribed Circle, 0.098" Thick, 11° Relief Angle

Manufacturer Part #: 10.651.723

S/N: 82450172

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleTP
Insert Size Code0702
Insert MaterialSolid Carbide
Material GradeC3
Manufacturer GradeK10
Inscribed Circle (Decimal Inch)0.1650
Insert Holding MethodScrew
Corner Radius (Decimal Inch)0.0120
Relief Angle11
RakePositive
SeriesTPGT
Coating ProcessUncoated
Included Angle60
Insert ShapeTriangle
Primary Workpiece MaterialAluminum, Non-Ferrous Metal
Rake Angle25
ShapeTriangle
Coating/FinishBright/Uncoated
UNSPSC Code23242105
Thickness (Decimal Inch - 4 Decimals)0.0980
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
