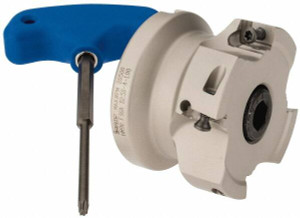

Iscar 2-1/2" Cut Diam, 1" Arbor Hole Diam, 0.56" Max Depth, Indexable Square-Shoulder Face Mill Takes 4 Inserts, 0/90° Lead Angle, 1-3/4" High, AD1505, HM90 AD1505 Insert Style, Series HM90 3102109 - 82556564
Brand: Iscar- SKU:
- 82556564
- ID:
- 680683
$983.26
Iscar 2-1/2" Cut Diam, 1" Arbor Hole Diam, 0.56" Max Depth, Indexable Square-Shoulder Face Mill Takes 4 Inserts, 0/90° Lead Angle, 1-3/4" High, AD1505, HM90 AD1505 Insert Style, Series HM90
Manufacturer Part #: 3102109
S/N: 82556564
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | AD 1505, HM90 AD 1505 |
| Cutter Style | HM90 F90A-15 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp, Screw |
| Lead Angle | 0/90 |
| Series | HM90 |
| Maximum Ramping Angle | 2.00 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 2.3300 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.7800 |
| Complete Insert Compatibility | ADCA150340/150350, ADKT 15056L/R-HM |
| Manufacturers Catalog Number | HM90 F90A D2.50-4-1.00 |
| Keyway Depth (Decimal Inch) | 0.2188 |
| Coolant Through | No |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
