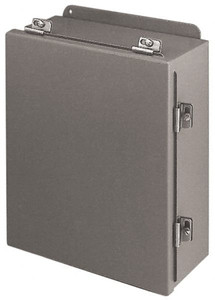

Cooper B-Line NEMA 4, 12, 13 Steel Standard Enclosure with Hinge Flat Cover 8" Wide x 10" High x 4" Deep, Rainproof & Watertight 78205174040 - 82608886
Brand: Cooper B-Line- SKU:
- 82608886
- ID:
- 592381
$509.49
Cooper B-Line NEMA 4, 12, 13 Steel Standard Enclosure with Hinge Flat Cover 8" Wide x 10" High x 4" Deep, Rainproof & Watertight
Manufacturer Part #: 78205174040
S/N: 82608886
UNSPSC: 39121300
UPC: 782051740400
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Enclosure Type | Standard |
| Enclosure Material | Steel |
| Cover Color | Gray |
| Finish | Polyester Powder Coat |
| Cover Type | Hinge Flat |
| Overall Height (Decimal Inch) | 10.0000 |
| Overall Height (Mm - 5 Decimals) | 254.00 |
| Overall Height (Inch) | 10 |
| Overall Depth (Decimal Inch) | 4.0000 |
| Overall Depth (Inch) | 4 |
| Overall Depth (Mm) | 102.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 8.0000 |
| Overall Width (Inch) | 8 |
| Overall Width (mm) | 203.00 |
| Material Gauge | 16 |
| Resistance Features | Rainproof, Watertight |
| Includes | #10-32 Weldnuts, Continuous Hinge, External Mounting Feet, Ground Stud, Seamless Poured-in-place Gasket, Stainless Steel Hinge Pins, Stainless Steel Screw Clamps |
| Standards | ANSI 61, CSA C22.2 No. 94 Certified, UL Listed 508 |
| Nema Rating | 12, 13, 4 |
