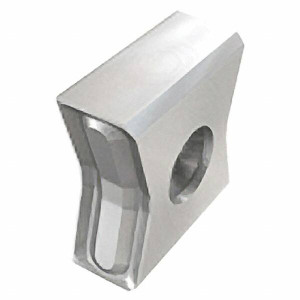

Iscar LNAT1506PN-W IC4100 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 0.5976" Long x 0.5453" Thick x 0.2362" Wide 5605389 - 82744277
Brand: Iscar- SKU:
- 82744277
- ID:
- 660045
$41.80
Iscar LNAT1506PN-W IC4100 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 0.5976" Long x 0.5453" Thick x 0.2362" Wide
Manufacturer Part #: 5605389
S/N: 82744277
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | LNAT |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Butterfly |
| Manufacturer Grade | IC4100 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.5450 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.5976 |
| Insert Size Code | 1506 |
| Material Grade | C2, C3, C4, C6, C7 |
| Inscribed Circle (Decimal Inch) | 0.2350 |
| Thickness Range (Decimal Inch) | 0.5000+ |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | TANGMILL |
| Coating Process | MTCVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5976 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron, Hard Material |
| Primary Workpiece Material Code | K, H |
| Secondary Workpiece Material Code | H |
| Ansi Code | LNAT 1506PN-W IC4100 |
| Iso Code | LNAT 1506PN-W |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Wiper |
| Manufacturers Catalog Number | LNAT 1506PN-W IC4100 |
| Cutter Series Compatibility | SSB-LN15, F90LN |
| Chip Breaker | W |
| Material Application | Cast Iron, Hard Material |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2350 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5976 |
