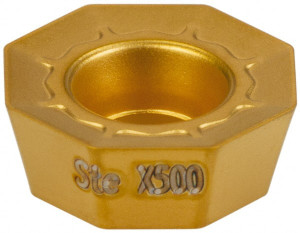

Kennametal ODMT040408EN 41 X500 Carbide Milling Insert TiN/TiC/TiN Finish, 0.157" Long x 0.187" Thick 5656811 - 82813486
Brand: Kennametal- SKU:
- 82813486
- ID:
- 661354
$37.83
Kennametal ODMT040408EN 41 X500 Carbide Milling Insert TiN/TiC/TiN Finish, 0.157" Long x 0.187" Thick
Manufacturer Part #: 5656811
S/N: 82813486
UNSPSC: 23291601
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Insert Style | ODMT |
| Insert Size | 04 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | X500 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Coating/Finish | TiN, TiC, TiN |
| Relief Angle | 15.00 |
| Insert Size Code | 040408 |
| Material Grade | C1, C2, C3, C6, C7 |
| Inscribed Circle (Decimal Inch) | 0.5040 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | ODMT |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | ODMT040408EN41 |
| Iso Code | ODMT040408EN41 |
| Standards | ANSI, ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | ODMT040408EN41 |
| Cutter Series Compatibility | 7745VOD04 |
| Chip Breaker | 41 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.5040 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5040 |
