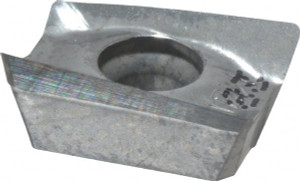

Iscar HM90ADCR1505PDFR-P28 Carbide Milling Insert Uncoated, 0.6024" Long x 0.2717" Thick x 0.376" Wide 5602966 - 83788869
Brand: Iscar- SKU:
- 83788869
- ID:
- 660535
$36.74
Iscar HM90ADCR1505PDFR-P28 Carbide Milling Insert Uncoated, 0.6024" Long x 0.2717" Thick x 0.376" Wide
Manufacturer Part #: 5602966
S/N: 83788869
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ADCR |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC28 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2720 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (mm) | 12.00 |
| Insert Size Code | 1505 |
| Material Grade | C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.3760 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Series | HELI2000 |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.6020 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | HM90 ADCR 1505PDFR-P IC28 |
| Iso Code | HM90 ADCR 1505PDFR-P |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | HM90 ADCR 1505PDFR-P IC28 |
| Cutter Series Compatibility | HM90-15 |
| Chip Breaker | P |
| Material Application | Non-Ferrous Metal |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3760 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6420 |
