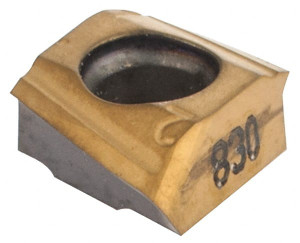

Iscar T290LNHT050208TR IC830 Carbide Milling Insert TiAlN/TiN Finish, 0.2244" Long x 0.2283" Thick x 0.1102" Wide 5606786 - 83905729
Brand: Iscar- SKU:
- 83905729
- ID:
- 660772
$33.01
Iscar T290LNHT050208TR IC830 Carbide Milling Insert TiAlN/TiN Finish, 0.2244" Long x 0.2283" Thick x 0.1102" Wide
Manufacturer Part #: 5606786
S/N: 83905729
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | LNHT |
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Butterfly |
| Manufacturer Grade | IC830 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2300 |
| Coating/Finish | AlTiN, TiN |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 5.00 |
| Insert Size Code | 050208 |
| Inscribed Circle (Decimal Inch) | 0.1060 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Series | SUMOMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2264 |
| Rake | Negative |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Secondary Workpiece Material Code | S |
| Ansi Code | T290 LNHT 050208TR IC830 |
| Iso Code | T290 LNHT 050208TR |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | T290 LNHT 050208TR IC830 |
| Cutter Series Compatibility | T290 |
| Chip Breaker | TR |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.1060 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2264 |
