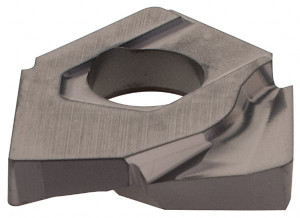

Iscar HCCD.62R.031QF IC908 Carbide Milling Insert TiAlN Finish, 0.133" Thick x 5/8" Wide 5604298 - 83923789
Brand: Iscar- SKU:
- 83923789
- ID:
- 660820
$74.46
Iscar HCCD.62R.031QF IC908 Carbide Milling Insert TiAlN Finish, 0.133" Thick x 5/8" Wide
Manufacturer Part #: 5604298
S/N: 83923789
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | HCC |
| Insert Size | 0.62 |
| Insert Material | Solid Carbide |
| Insert Shape | Bull Nose |
| Manufacturer Grade | IC908 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1330 |
| Coating/Finish | TiAlN |
| Maximum Depth of Cut (Decimal Inch) | 0.4060 |
| Insert Size Code | 0.62-R0.031 |
| Material Grade | Submicron |
| Width (Inch) | 5/8 |
| Length (Inch) | 13/32 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Series | BALLPLUS |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4060 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Secondary Workpiece Material Code | H, S |
| Ansi Code | HCC D.62-R.031-QF IC908 |
| Iso Code | HCC D.62-R.031-QF |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HCC D.62-R.031-QF IC908 |
| Cutter Series Compatibility | HCE, HCM |
| Chip Breaker | QF |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4060 |
