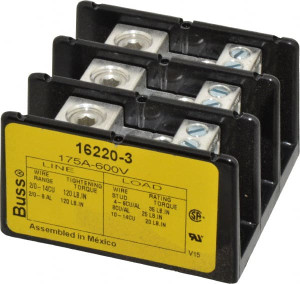

Bussmann 3 Poles, 175 Amp, 8-2/0 AWG (Al), 14-2/0 AWG (Cu) Primary, 4-14 AWG (Cu), 4-8 AWG (Al) Secondary, Thermoplastic Power Distribution Block 600 VAC/VDC, 1 Primary Connection, 5.2 Inch Long x 3.32 Inch Deep x 4 Inch High 16220-3 - 84720440
Brand: Bussmann- SKU:
- 84720440
- ID:
- 591008
$155.35
Bussmann 3 Poles, 175 Amp, 8-2/0 AWG (Al), 14-2/0 AWG (Cu) Primary, 4-14 AWG (Cu), 4-8 AWG (Al) Secondary, Thermoplastic Power Distribution Block 600 VAC/VDC, 1 Primary Connection, 5.2 Inch Long x 3.32 Inch Deep x 4 Inch High
Manufacturer Part #: 16220-3
S/N: 84720440
UNSPSC: 39121410
UPC: 051712149273
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Amperage | 175 |
| Number of Poles | 3 |
| Number of Primary Connections | 1 |
| Number of Secondary Connections | 4 |
| Voltage | 600 VAC/VDC |
| Primary Wire Range | 8-2/0 AWG (Al), 14-2/0 AWG (Cu) |
| Secondary Wire Range | 4-14 AWG (Cu), 4-8 AWG (Al) |
| Housing Material | Thermoplastic |
| Overall Height (Decimal Inch) | 4 |
| Standards Met | CE, CSA Certified, CSA Class 6228-01 File 53787, Guide XCFR2, UL 1059, UL File E62622, UL Listed |
