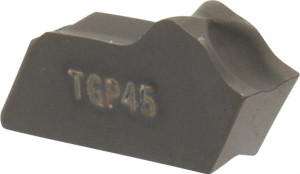

Seco Tools 150.10-3N-14 TGP45 Carbide Cutoff Insert TiCN/Al2O3 Finish, 0° Neutral Lead Angle, 0.122" Cutting Width, 0.008" Corner Radius, Series 150.10 02636636 - 84764406
Brand: Seco Tools- SKU:
- 84764406
- ID:
- 647946
$30.74
Seco Tools 150.10-3N-14 TGP45 Carbide Cutoff Insert TiCN/Al2O3 Finish, 0° Neutral Lead Angle, 0.122" Cutting Width, 0.008" Corner Radius, Series 150.10
Manufacturer Part #: 02636636
S/N: 84764406
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TGP45 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | 14 |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off |
| Series | 150.10 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | OD |
| Width Tolerance | 0.003 |
| Maximum Depth of Cut (mm) | 3.00 |
| Material Grade | C5 |
| Insert Seat Size | 3 |
| Coating Classification | Duratomic |
| Coating/Finish | TiCN, Al2O3 |
| Single Or Double End | Single |
