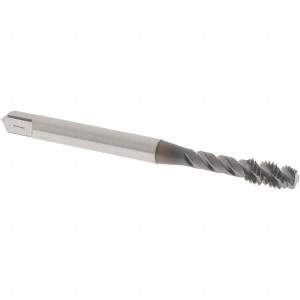

OSG Spiral Flute Tap: #10-32 UNF, 3 Flutes, Modified Bottoming, 2B Class of Fit, Vanadium High Speed Steel, TICN Coated 2-3/8" OAL, Right Hand Thread, H3, Series 290 2913808 - 84803428
Brand: OSG USA, INC.- SKU:
- 84803428
- ID:
- 770953
$36.26
OSG Spiral Flute Tap: #10-32 UNF, 3 Flutes, Modified Bottoming, 2B Class of Fit, Vanadium High Speed Steel, TICN Coated 2-3/8" OAL, Right Hand Thread, H3, Series 290
Manufacturer Part #: 2913808
S/N: 84803428
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #10-32 |
| Thread Standard | UNF |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | TiCN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Alloy Steel, Carbon Steel, Cast Iron, Stainless Steel, Die Steel, Hardened Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Threads per Inch | 32 |
| Overall Length (Inch) | 2-3/8 |
| Thread Length (Decimal Inch) | 0.326 |
| Overall Length (Decimal Inch) | 2.125 |
| Shank Diameter (Decimal Inch) | 0.168 |
| Square Length (Decimal Inch) | 0.25 |
| Square Size (Decimal Inch) | 0.152 |
| Flute Style | Spiral |
| Series | 290 |
