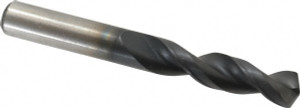

Cleveland Twist Drill 13/32" 135° Parabolic Flute Cobalt Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 1-15/16" Flute Length, 3-5/16" OAL, Split Point, Straight Shank C15072 - 84812221
Brand: Cleveland Twist Drill- SKU:
- 84812221
- ID:
- 734326
$64.96
Cleveland Twist Drill 13/32" 135° Parabolic Flute Cobalt Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 1-15/16" Flute Length, 3-5/16" OAL, Split Point, Straight Shank
Manufacturer Part #: C15072
S/N: 84812221
UNSPSC: 23241635
UPC: 697334150725
(Minimum Order Quantity=1, Package Quantity=5)
Specifications:
| Drill Bit Size (Inch) | 13/32 |
| Drill Bit Size (Decimal Inch) | 0.4062 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Flute Type | Parabolic |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Split |
| Primary Workpiece Material | Alloy, Aluminum |
| Shank Diameter (Decimal Inch) | 0.4063 |
| Overall Length (Inch) | 3-5/16 |
| Series | 2175A |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 1.0237 |
| Shank Length (mm) | 26.00 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Standards | ASME B94.11M |
| Flute Length (Inch) | 1-15/16 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Specification Designation | ANSI |
| Material Grade | M42 |
