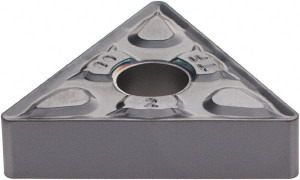

Iscar TNMG432TF IC907 Carbide Turning Insert 0.866" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 60° Triangle 5505127 - 85108975
Brand: Iscar- SKU:
- 85108975
- ID:
- 670600
$23.05
Iscar TNMG432TF IC907 Carbide Turning Insert 0.866" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 60° Triangle
Manufacturer Part #: 5505127
S/N: 85108975
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Manufacturer Grade | IC907 |
| Coating/Finish | TiAlN, TiN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | H, M, S |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | C7, C8 |
| Chip Breaker | TF |
| Insert Size Code | 432 |
